Açıklama

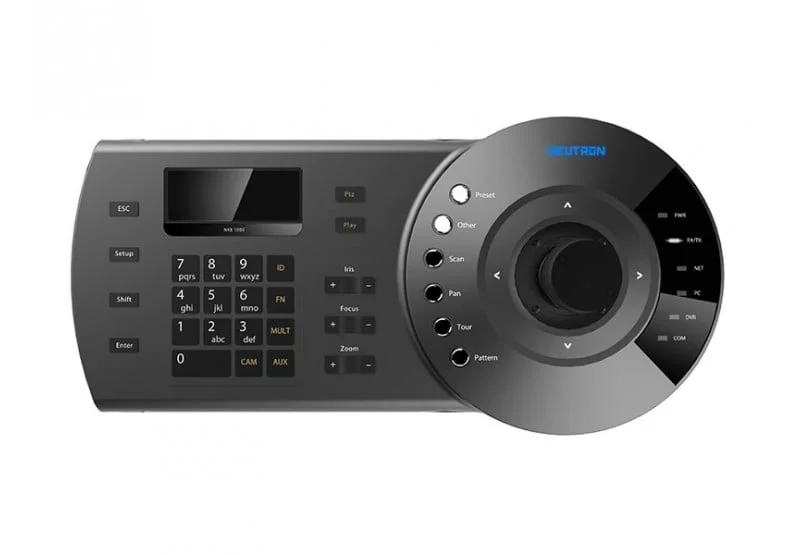

| Model | NKB1000 | ||
| General | |||
| Keyboard Keypanel | Electromechanical | ||
| Joystick | 3-axis, vector-solving, with twisting, return to-center head | ||
| Keyboard Connector | RJ-45,RS232,RS485,RS422,USB, | ||
| Keyboard Communication | Direct Mode, Network Mode | ||
| Direct Mode | Interface: RS232/RS485 DVR Protocol: DH2 Dome Protocol: DH-SD/PELCO-D/PELCO-P/PELCO-D1/PELCO-P1…… |
||
| Network Mode | Interface: RJ45 DVR/Network Dome: IP Address/Port/Protocol |
||
| Display | LCD, 75.2mm x 33.85mm | ||
| Environmental | |||
| Power Supply | Power adapter, input 100V~240V 50Hz / 60Hz,output DC12V/1000mA | ||
| Power Consumption | 5W | ||
| Working Temperature | -10℃~+55℃ | ||
| Working Humidity | 10%~90% | ||
| Atmosphere Pressure | 86kpa~106kpa | ||
| Dimension | 330mmx160(140)mmx37.5(21)mm (W×D×H) (height: 100mm including joystick) | ||
| Weight | 2.5KG | ||
