Açıklama

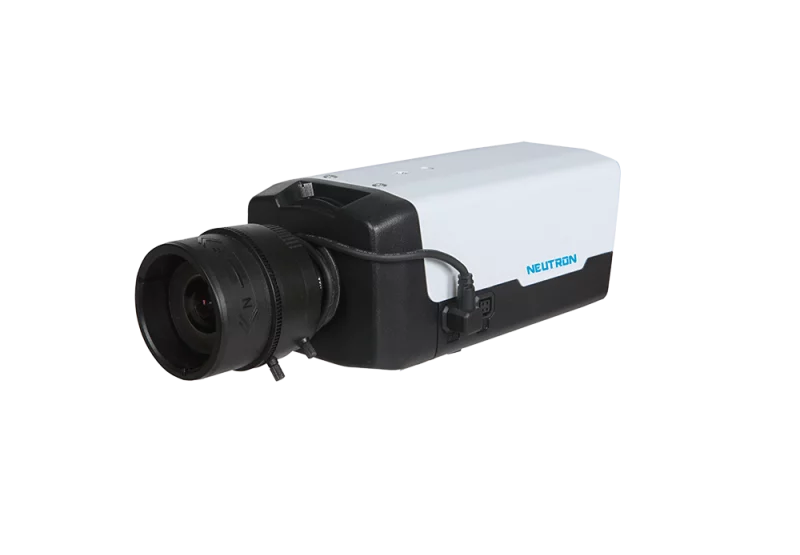

| Model | IPC542E-DUG |
| Camera | |
| Sensor | 1/1.9″ CMOS, progressive scan |
| Day & Night | Automatically removable IR-cut filter(ICR) |
| Shutter | Auto/Manual, 1/6~1/8000 s |
| Min. Illumination | Colour: 0.002 Lux (F1.2, 50IRE)
Black & White: 0.0002 Lux (F1.2, 50IRE) |
| S/N | >52dB |
| WDR | 120dB |
| Lens Mount | C/CS |
| DC-Iris | DC 4V (4-Pin) |
| Motor Zoom/focus | DC 5V (4-Pin) |
| Video | |
| Max. Resolution | 1920 × 1080 |
| Video Compression | H.264,MJPEG |
| Frame Rate | 1080P (1920×1080): Max. 30 fps; 720P (1280×720): Max. 30 fps; D1 (720×576): Max. 25 fps |
| 9:16 Corridor Mode | Supported |
| ROI | Supported |
| Video Streaming | Triple |
| OSD | Up to 8 OSDs |
| Privacy Mask | Up to 4 areas |
| Audio | |
| Audio Compression | G.711 |
| Two-way Talking | Supported |
| Storage | |
| Edge Storage | SD, up to 64 GB |
| Network | |
| Protocols | L2TP,IPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP,PPPoE,RTP,RTSP, NTP,FTP,HTTP,SNMP,SIP |
| Compatible Integration | ONVIF, IMOS,API |
| Interface | |
| Audio I/O | 3.5 mm audio interface |
| Input: impedance 35 kΩ; amplitude 2 V [p-p] | |
| Output: impedance 600 Ω; amplitude 2 V [p-p] | |
| Alarm I/O | 2 / 1 |
| Serial Port | 1 RS485 (support Pelco-D/P) |
| Network | 100M Base-FX SFP+10M/100M Base-TX Ethernet |
| Video Output | 1 BNC, impedance 75 Ω; amplitude 1 V [p-p] |
| General | |
| Power | 24 V AC, 12 V DC, or PoE (IEEE802.3 af) |
| Power consumption: 4.8W (6.8W with ICR on) | |
| Dimensions (L x W x H) | 151.5 x 71 x 65 mm (6.0″ x 2.8″ x 2.6″) (excluding the lens) |
| Weight | 0.48 kg (1.1 lb) |
| Working Environment | –20°C ~ 60°C (-4°F ~ 140°F), Humidity ≤ 90% RH(non-condensing) |
