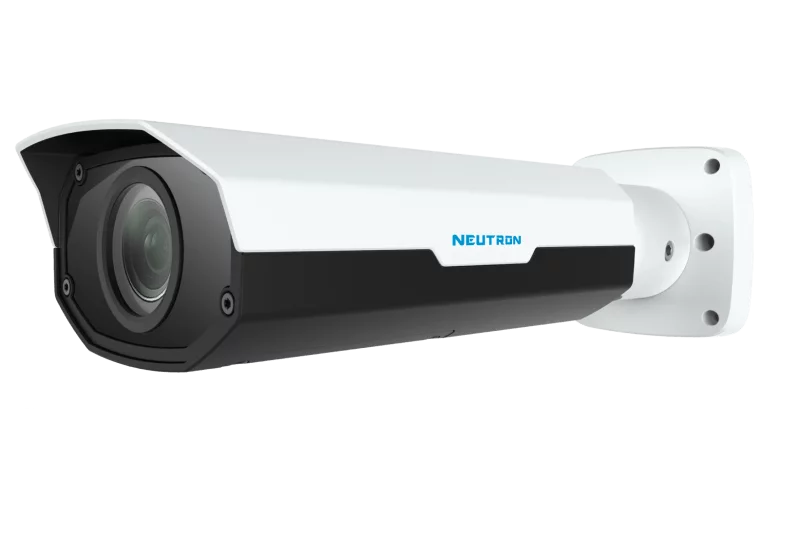

| Sensor | IPC242ER5-DL |
| Camera | |
| Sensor | 1/2.8″, 2 megapixel, progressive scan CMOS |
| Shutter | Auto/Manual, 1/6~1/8000 s |
| Lens | 7 ~ 22 mm@F1.4; Angle of View (H): 43°~ 14° |
| Zoom/Focus | Manual |
| Min. Illumination | Colour: 0.02 Lux (F1.4, AGC ON)
0 Lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| S/N | >52dB |
| WDR | 120 dB |
| IR Range | Up to 50m (164 ft) IR range |
| Video | |
| Max. Resolution | 1920 × 1080 |
| Video Compression | H.264,MJPEG |
| Frame Rate | 1080P (1920*1080): Max. 30 fps; 720P (1280*720): Max. 30 fps; D1 (720*576): Max. 25 fps |
| 9:16 Corridor Mode | Supported |
| ROI | Supported |
| Video Streaming | Triple |
| OSD | Up to 8 OSDs |
| Privacy Mask | Up to 4 areas |
| Audio | |
| Audio Compression | G.711 |
| Two-way audio | Supported |
| Storage | |
| Edge Storage | Micro SD, up to 128 GB |
| Network | |
| Protocols | L2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SNMP, SIP, 802.1x |
| Compatible Integration | ONVIF, API |
| Interface | |
| Audio I/O | 3.5 mm audio interface |
| Input: impedance 35 kΩ; amplitude 2 V [p-p] | |
| Output: impedance 600 Ω; amplitude 2 V [p-p] | |
| Alarm I/O | 2 / 1 |
| Serial Port | 1 RS485 |
| Network | 10M/100M Base-TX Ethernet |
| Video Output | 1 BNC, impedance 75 Ω; amplitude 1 V [p-p] |
| General | |
| Power | 12 V DC, 24 V AC or PoE (IEEE802.3 af) |
| Power consumption: 4.5 W (11W with IR on) | |
| Dimensions (L × W × H) | 282.6 ×90 ×86 mm (11.1” × 3.5” × 3.4”) |
| Weight | 1.2 kg (2.6 lb) |
| Working Environment | –40°C ~ +60°C (-40°F ~ 140°F), Humidity ≤ 95% RH(non-condensing) |
| Ingress Protection | IP66 |
