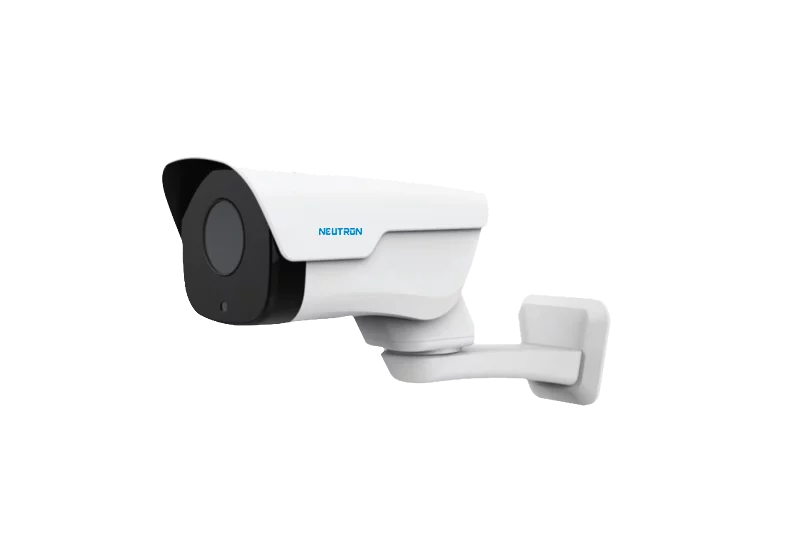

| Model | IPC742SR9-PZ30-32G |
| Camera | |
| Sensor | 1/2.8″, 2 megapixel, progressive scan CMOS |
| Lens | 3 ~ 6 mm, 2X optical zoom, 16X digital zoom |
| Iris | Auto/Manual, F1.8 |
| Shutter | Auto/Manual, 1/6s ~ 1/8000s |
| Minimum Illumination | Color: 0.02 Lu× (F1.8, AGC ON)
0 Lux with IR on |
| Day/Night | IR-cut filter with auto switch (ICR) |
| IR | 100m (328 ft) IR range |
| S/N | >52dB |
| WDR | Digital |
| Noise Reduction | 2D/3D |
| Video | |
| Max. Resolution | 1920×1080 |
| Video Compression | H.265, H.264, MJPEG |
| Frame Rate | 1080P (1920×1080): Max. 30 fps, 720P(1280×720): Max. 30 fps |
| Video Streaming | Triple streams |
| OSD | Up to 8 OSDs |
| ROI | Supported |
| Privacy Mask | Supported |
| Audio | |
| Audio Compression | G.711 |
| Two-way Audio | Supported |
| Storage | |
| Edge Storage | Built-in 32 GB eMMC |
| Network | |
| Protocol | L2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, FTP, SMTP, SIP |
| Compatibility | ONVIF, API |
| Structure | |
| Pan Range | 250° |
| Pan Speed | 0.1°/s ~ 30°/s |
| Preset speed: 30°/s | |
| Tilt Range | -50° ~ 50° |
| Tilt Speed | 0.1°/s ~10°/s |
| Preset speed: 10°/s | |
| Number of Presets | 400 |
| Patrol | Up to 16 patrols, up to 32 presets per patrol
Note: The total number of patrols and patterns is 16. |
| Interface | |
| Audio I/O | 3.5 mm connector |
| Input: impedance 35 kΩ; amplitude 2 V [p-p] | |
| Output: impedance 600 Ω; amplitude 2 V [p-p] | |
| Alarm I/O | 2 / 1 |
| Network | 10M/100M adaptive Ethernet |
| General | |
| Power | 12 V DC±25%, PoE (IEEE802.3at) |
| Power consumption: Max. 17.23 W | |
| Dimensions | 357 mm × 106 mm × 194 mm (14.1″ × 4.2″ × 7.7″) |
| Weight | 1.16 kg (2.6 lb) |
| Working Environment | –40°C to +60°C (-40°F to 140°F), ≤ 95% RH |
| Ingress Protection | IP66 |
