Açıklama

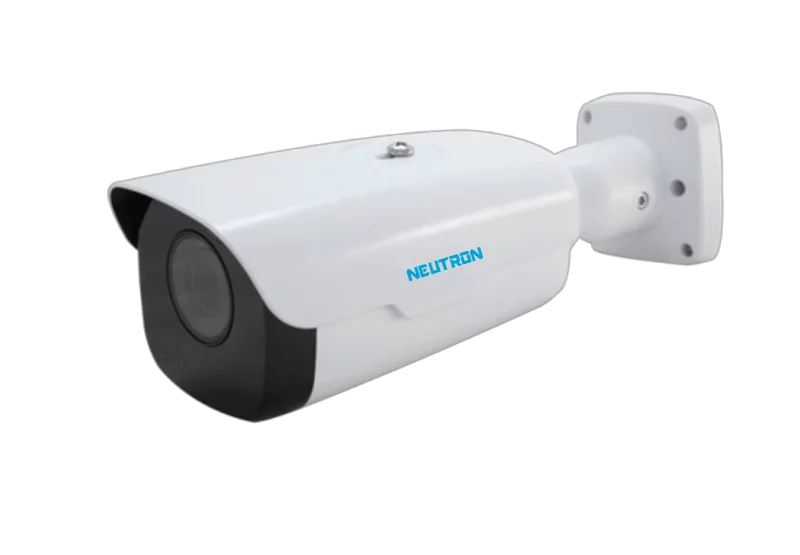

| Model | IPC262ER9-DUZ | IPC262ER9-X10DU |
| Camera | ||
| Sensor | 1/2.8″, 2 megapixel, progressive scan CMOS | |
| Shutter | Auto/Manual, 1/10~1/100,000s | |
| Lens | 2.8~12mm @F1.6; DC-Iris | 4.7 ~ 47mm@F1.6; DC-Iris |
| Angle of View (H) | 97°(wide)~ 35°(tele) | 65°(wide) ~ 9°(tele) |
| Zoom/Focus | 4X Optical Zoom / Auto Focus | 10X Optical Zoom / Auto Focus |
| Min. Illumination | Colour: 0.002 Lux (F1.6, AGC ON)
0 Lux with IR |
|
| Day/Night | IR-cut filter with auto switch (ICR) | |
| S/N | >52dB | |
| WDR | 120dB | |
| IR | Smart-IR ,up to 100m (328ft) IR range | |
| Video | ||
| Max. Resolution | 1920× 1080 | |
| Video Compression | H.265, H.264, MJPEG | |
| Frame Rate | 1080P (1920*1080): Max. 30 fps | |
| 9:16 Corridor Mode | Supported | |
| ROI | Supported | |
| Video Streaming | Triple | |
| OSD | Up to 8 OSDs | |
| Privacy Mask | Up to 4 areas | |
| Audio | ||
| Audio Compression | G.711 | |
| Two-way audio | Supported | |
| Storage | ||
| Edge Storage | Micro SD, Up to 128 GB | |
| Network | ||
| Protocols | L2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SNMP, SIP, QoS | |
| Compatible Integration | ONVIF, API | |
| Interface | ||
| Audio I/O | Audio cable | |
| 1 Input: impedance 35 kΩ; amplitude 2 V [p-p] | ||
| 1 Output: impedance 600 Ω; amplitude 2 V [p-p] | ||
| Alarm I/O | 2 / 1 | |
| Network | 10M/100M Base-TX Ethernet | |
| Video Output | 1 BNC, impedance 75 Ω; amplitude 1 V [p-p] | |
| Serial | 1 RS485 | |
| General | ||
| Power | DC12V± 25%, AC24V±25% or PoE (IEEE802.3 at) | |
| Power consumption: 13.7W | ||
| Material | Cast aluminum | |
| Dimensions (L × W × H) | 305.5 ×104.1 ×97.3mm (12.0” × 4.1” × 3.8”) | |
| Weight | 1.65 kg (3.6 lb) | |
| Working Environment | -40°C ~ +60°C (-40°F ~ 140°F), Humidity ≤ 95% RH(non-condensing) | |
| Ingress Protection | IP67 | |
