Açıklama

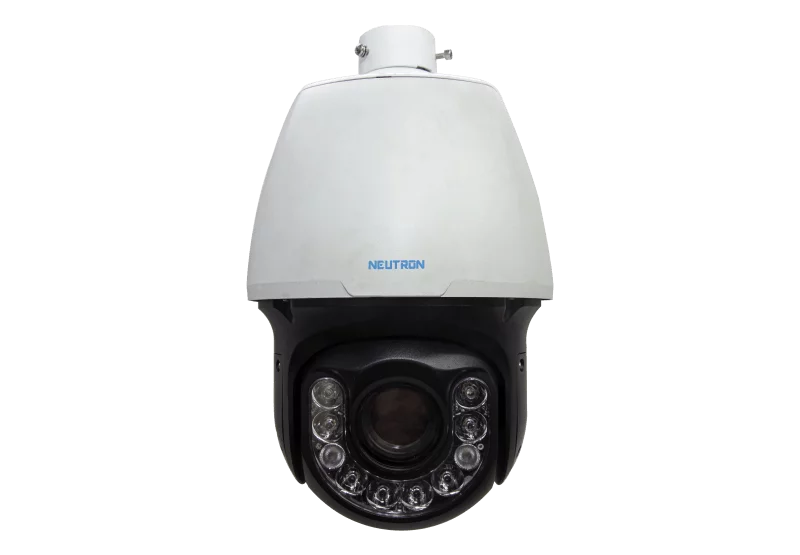

Model IPC6242SWH-X22U
Camera
Sensor: 1/1.9″, 2 megapixel, progressive scan, CMOS
Lens: 6.5 ~ 143 mm (22x optical zoom)
Angle of View (H): 70° (wide) ~ 3.76° (tele)
Iris: Auto/Manual; F1.5 ~ F3.4
Shutter: Auto/Manual; shutter time: 1/6 s ~ 1/8000 s
Minimum Illumination: Colour: 0.002 lux (F1.6, 50IRE) – B/W: 0.0002 lux (F1.6, 50IRE)
S/N: >52dB
Day/Night: IR-cut filter with auto switch (ICR)
Video
Max. Resolution: 1920 × 1080
Video Compression: H.264,MJPEG
Frame Rat: 1080P (1920×1080):Max.60 fps; 720P (1280×720):Max.60 fps; D1 (720×576):Max.25 fps
Video Streaming: Triple
OSD: Up to 8 OSDs
Privacy Mask: Up to 8 areas
Digital Zoom: Supported
Audio
Audio Compression: G.711
Two-way audio: Supported
Storage
Edge Storage: Micro SD, up to 64 GB
Network
Protocols: L2TP,IPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP,PPPoE,RTP,RTSP,NTP,FTP,HTTP,SNMP,SIP
Compatible Integration: ONVIF, IMOS,API
Pan & Tilt
Pan Range: 360° (endless)
Pan Speed: 0.1°/s ~ 240°/s
Preset speed: 300°/s
Tilt Range: –15° ~ +90° (auto reverse)
Tilt Speed: 0.1° ~ 160°/s
Preset speed: 240°/s
Number of Preset: 255
Patrol: Up to 16 patrols, up to 32 presets per patrol – Note: The total number of patrols and patterns is 16.
Pattern: Up to 16 patterns, with the total recording time not less 15 minutes per pattern
Interface
Audio I/O: audio cable
Input: impedance 35 kΩ; amplitude 2 V [p-p]
Output: impedance 600 Ω; amplitude 2 V [p-p]
Alarm I/O: 2 / 1
Serial Port: 1 RS485
Network: 1 RJ45 10M/100M Base-TX Ethernet
Video Output: 1 BNC, impedance 75 Ω; amplitude 1 V [p-p]
General
Power: 24 V AC (Default), 24 V DC
Power consumption: 12 ~ 46W (white light:27W,heater:Max.12W)
Dimensions (Ø x H): Ø227 x 359.4 mm (Ø8.9” x 14.2”)
Weight: 5.5kg (12.1 lb)
Working Environment: –40°C ~ +70°C (-40°F ~ 158°F), Humidity ≤ 90% RH(non-condensing)
Ingress Protection: IP66
