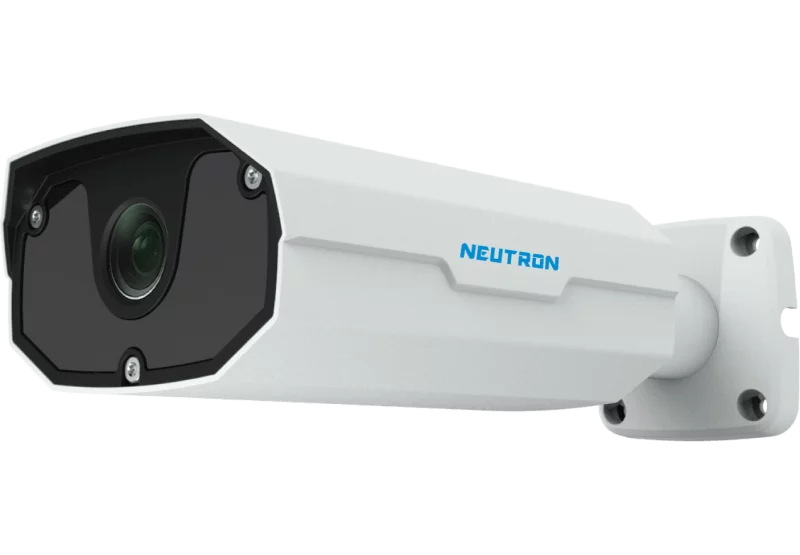

| Sensor | IPC221E-DIR-F60-IN | IPC221E-DIR-F120-IN |
| Camera | ||
| Sensor | 1/3″, 1.3 megapixel, progressive scan CMOS | |
| Shutter | Auto/Manual, 1/6~1/8000s | |
| Lens | 6mm | 12 mm |
| Angle of View (H) | 48° | 26.3° |
| Day/Night | IR-cut filter with auto switch (ICR) | |
| Min. Illumination | Colour: 0.06 Lux (F1.6, AGC ON)
0 Lux with IR |
|
| S/N | >50dB | |
| Image Rotation | Supported | |
| WDR | 120 dB | |
| Video | ||
| Max. Resolution | 1280 × 960 | |
| Video Compression | H.264,MJPEG | |
| Frame Rate | 960P (1280*960) 30 fps; 720P (1280*720) 30 fps; D1 (720*576) 25 fps | |
| 9:16 Corridor Mode | Supported | |
| ROI | Supported | |
| Video Streaming | Triple | |
| OSD | Up to 8 OSDs | |
| Privacy Mask | Up to 4 areas | |
| Audio | ||
| Audio Compression | G.711 | |
| Two-way Audio | Supported | |
| Network | ||
| Protocols | L2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SNMP, SIP, 802.1x | |
| Compatible Integration | ONVIF, API | |
| Interface | ||
| Audio I/O | Audio cable | |
| Input: impedance 35 kΩ; amplitude 2 V [p-p] | ||
| Output: impedance 600 Ω; amplitude 2 V [p-p] | ||
| Alarm I/O | 1/ 1 | |
| Network | 10M/100M Base-TX Ethernet | |
| General | ||
| Power | 12 V DC, or PoE (IEEE802.3af) | |
| Power consumption: 3.5 W (7.5W with IR on) | ||
| Dimensions (L × W × H) | 187.8 × 76 ×44 mm (7.4” × 3.0” × 1.7”) | |
| Weight | 0.58 kg (1.3 lb) | |
| Working Environment | -35°C ~ +60°C (-31°F ~ 140°F), Humidity ≤ 95% RH(non-condensing) | |
| Ingress Protection | IP66 | |
