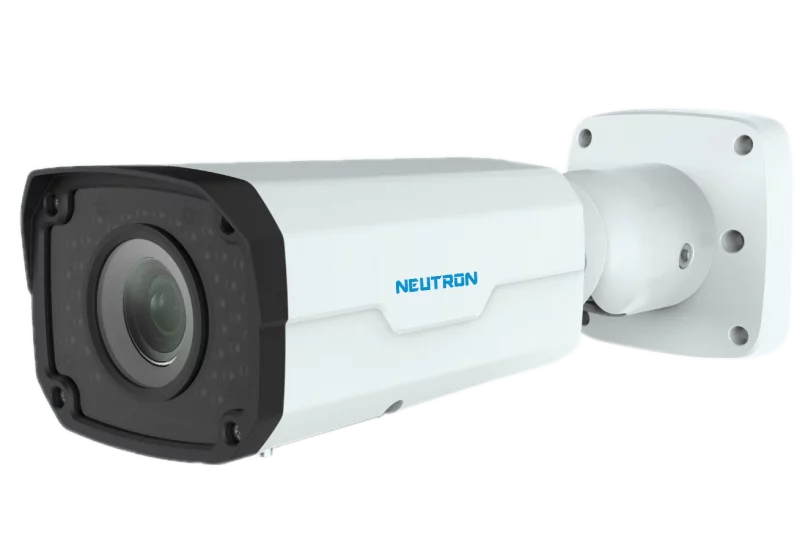

| Model | IPC2321EBR-P |
| Camera | |
| Sensor | 1/3″, 1.3 megapixel, progressive scan CMOS |
| Shutter | Auto/Manual, 1/6~1/8000s |
| Lens | 2.8~12 mm@F1.4; Angle of view: 90° ~ 28° |
| Zoom/Focus | Manual |
| Min. Illumination | Colour: 0.06 Lux (F1.4, 50IRE)
Black & White: 0.03Lux (F1.4, 50IRE) |
| Day/Night | IR-cut filter with auto switch (ICR) |
| S/N | >50dB |
| Video | |
| Max. Resolution | 1280 × 960 |
| Video Compression | H.264, MJPEG |
| Frame Rate | 960P (1280*960) Max. 30 fps; 720P (1280*720) Max. 30 fps; D1 (720*576) Max. 25 fps |
| 9:16 Corridor Mode | Supported |
| ROI | Supported |
| Video Streaming | Triple |
| OSD | Up to 8 OSDs |
| Privacy Mask | Up to 4 areas |
| Audio | |
| Audio Compression | G.711 |
| Two-way audio | Supported |
| Storage | |
| Edge Storage | Micro SD, up to 128 GB |
| Network | |
| Protocols | L2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, FTP, SMTP, SNMP, SIP, QoS |
| Compatible Integration | ONVIF, API |
| Interface | |
| Audio I/O | Audio cable |
| Input: impedance 35 kΩ; amplitude 2 V [p-p] | |
| Output: impedance 600 Ω; amplitude 2 V [p-p] | |
| Alarm I/O | 1 / 1 |
| Network | 10M/100M Base-TX Ethernet |
| General | |
| Power | 12 V DC, or PoE (IEEE802.3 af) |
| Power consumption: Max 8W | |
| Material | Cast aluminum |
| Dimensions (L × W × H) | 253.4 ×86 ×71.7 mm (9.98” × 3.4” × 2.8”) |
| Weight | 0.58kg (1.28lb) |
| Working Environment | -35°C ~ +60°C (-31°F ~ 140°F), Humidity ≤ 95% RH(non-condensing) |
| Ingress Protection | IP66 |
