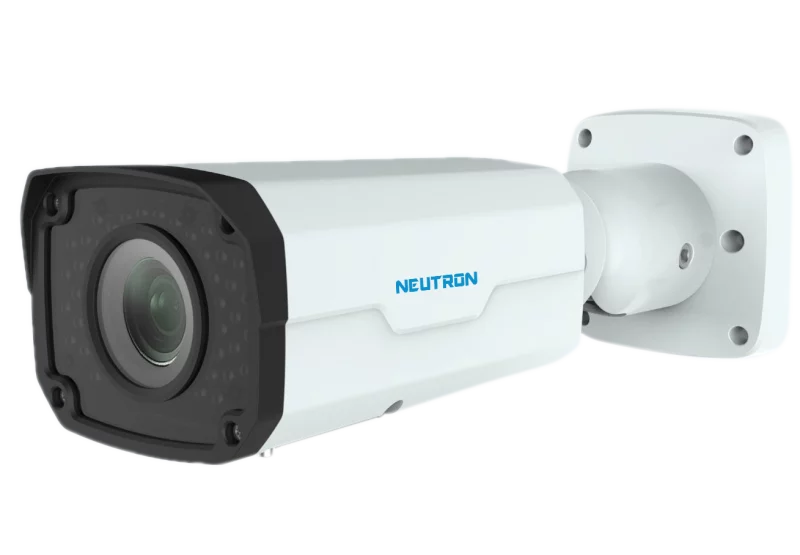

| Model | IPC2324EBR-DP | |
| Camera | ||
| Sensor | 1/3″, 4 megapixel, progressive scan CMOS | |
| Shutter | Auto/Manual, 1/6~1/8000s | |
| Lens | 2.8~12mm @F1.4; Angle of view: 95°~29° | |
| Zoom/Focus | Manual | |
| Min. Illumination | Colour: 0.02 Lux (F1.4, AGC ON)
0 Lux with IR on |
|
| Day/Night | IR-cut filter with auto switch (ICR) | |
| IR Range | Up to 30m (98 ft) IR range | |
| S/N | >55 dB | |
| WDR | Optical WDR (up to 120 dB) | |
| Video | ||
| Max. Resolution | 2592 × 1520 | |
| Video Compression | H.265, H.264, MJPEG | |
| Frame Rate | 4MP (2592×1520): Max. 20 fps; 4MP (2560×1440): Max. 25 fps
3MP (2048×1520): Max. 30 fps; 1080P (1920×1080): Max. 30 fps |
|
| 9:16 Corridor Mode | Supported | |
| ROI | Supported | |
| Video Streaming | Triple | |
| OSD | Up to 8 OSDs | |
| Privacy Mask | Up to 4 areas | |
| Audio | ||
| Audio Compression | G.711 | |
| Two-way audio | Supported | |
| Storage | ||
| Edge Storage | Micro SD, up to 128 GB | |
| Network | ||
| Protocols | L2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, Qos, NTP, FTP, HTTP, SNMP, SIP | |
| Compatible Integration | ONVIF, API | |
| Interface | ||
| Audio I/O | Audio cable | |
| Input: impedance 35 kΩ; amplitude 2 V [p-p] | ||
| Output: impedance 600 Ω; amplitude 2 V [p-p] | ||
| Alarm I/O | 1 / 1 | |
| Network | 10M/100M Base-TX Ethernet | |
| Video Output | 1 BNC, impedance 75 Ω; amplitude 1 V [p-p] | |
| General | ||
| Power | 12 V DC, or PoE (IEEE802.3 af) | |
| Power consumption: Max 8W | ||
| Material | Cast aluminum | |
| Dimensions (L × W × H) | 253.4 ×86 ×71.7 mm (9.98” × 3.4” × 2.8”) | |
| Weight | 0.58kg (1.28lb) | |
| Working Environment | -35°C ~ +60°C (-31°F ~ 140°F), Humidity ≤ 95% RH(non-condensing) | |
| Vandal Resistant | IK10 | |
| Ingress Protection | IP66 | |
