| Model |

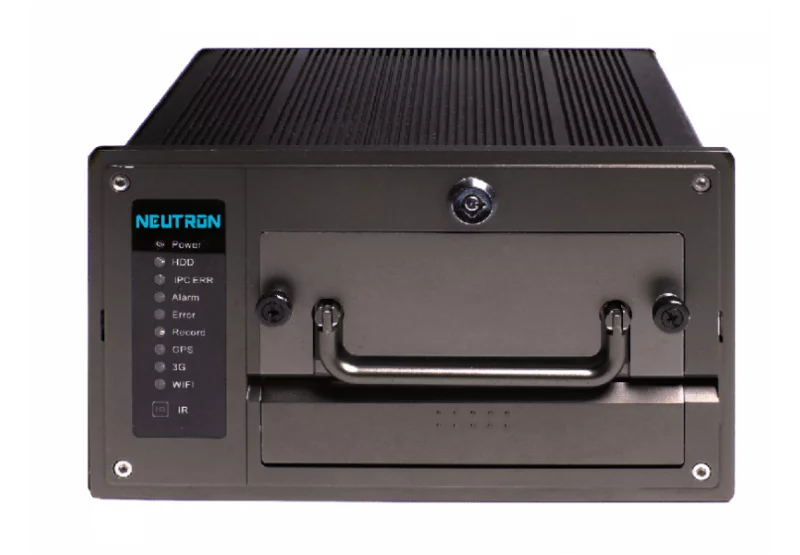

NVR0404MF |
| System |
| Main Processor |
Dual-core embedded processor |
| Operating System |
Embedded LINUX |
| Video |
| IP Camera Input |
4 channel |
| Standard |
NTSC, PAL |
| Audio |
| Input |
4 channel |
| Output |
1 channel |
| Two-way Talk |
1 channel Input, 1 channel Output (aviation connector) |
| Display |
| Interface |
1 VGA, 2 TV |
| Resolution |
1920×1080, 1280×1024, 1280×720, 1024×768 |
| Display Split |
1/4 |
| OSD |
Camera title, Time, Video loss, Camera lock, Motion detection, Recording |
| Recording |
| Compression |
H.264 / MJPEG |
| Resolution |
1080P(1920×1080) / 720P(1280×720) / D1 (704×576/704×480) |
| Record Rate |
100/120fps@1080P |
| Bit Rate |
48 ~ 8192kbps |
| Record Mode |
Manual, Schedule(Regular(Continuous), MD, Alarm), Stop |
| Record Interval |
1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec |
| Video Detection & Alarm |
| Trigger Events |
Recording, PTZ, Tour, Alarm, Video Push, Email, FTP, Buzzer & Screen tips |
| Video Detection |
Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank |
| Alarm Input |
8 channel |
| Relay Output |
3 channel |
| Playback & Backup |
| Sync Playback |
1/4 |
| Search Mode |
Time/Date, Alarm, MD & Exact search (accurate to second), Smart search |
| Playback Function |
Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom |
| Backup Mode |
USB Device / Network |
| Network |
| Ethernet |
RJ-45 port (10/100M/1000M) |
| Wireless Network |
Built-in 3G / Wi-Fi module(optional) |
| GPS |
Built-in high accurate GPS module(optional) |
| Network Function |
HTTP, IPv4, TCP/IP, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, FTP, IP Filter |
| Max. User Access |
10 users |
| Storage |
| Internal HDD |
2 SATA ports |
| Auxiliary Interface |
| USB |
2 ports (1 Rear), USB2.0 |
| RS232 |
1 port |
| RS485 |
1 port |
| eSATA |
1 port |
| Memory Slot |
SD card, Max.32GB |
| General |
| Power Supply |
NVR: DC8V~36V |
| Power Consumption |
≤10W |
| Working Environment |
-10 ~+55°C / 10~90%RH |
| Dimension(W×D×H) |
180mm×208mm×100mm |
| Weight |
3KG(without HDD) |
