Açıklama

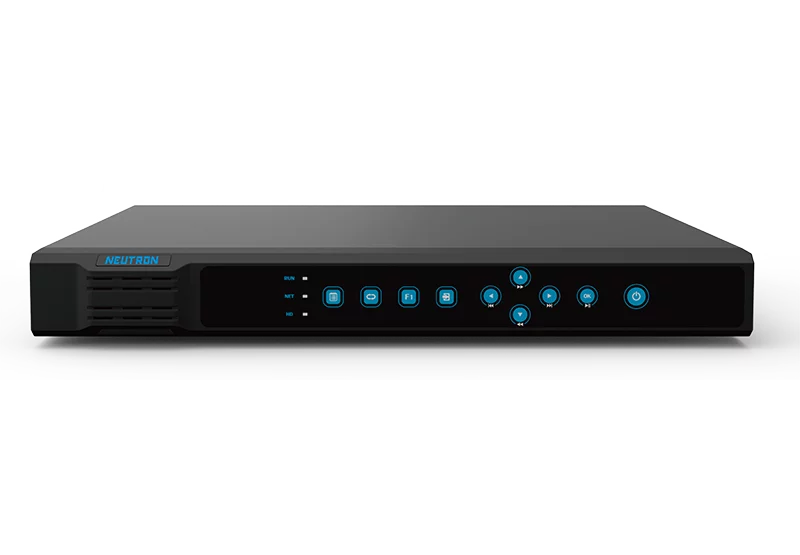

| Model | NVR201-04EP |
| Video and Audio | |
| IP Video Input | 4-ch |
| Two-way audio Input | 1-ch,RCA |
| Network | |
| Incoming bandwidth | 40Mbps |
| Outgoing bandwidth | 96Mbps |
| Remote connection | 128 |
| Video/Audio Output | |
| HDMI/VGA Output | HDMI/VGA:
1920x1080p /60Hz,1920x1080p /50Hz,1600×1200/60Hz,1280×1024/60Hz,1280×720/60Hz,1024×768/60Hz |
| Recording Resolution | 4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Audio Output | 1-ch,RCA |
| Synchronous Playback | 4-ch |
| Decoding | |
| Compression | H.264 |
| Live view/Playback | 4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Capability | 2 x 4MP@20, 4 x 1080p@30 |
| Hard Disk | |
| SATA | 1 SATA interface |
| Capacity | up to 6TB for each disk |
| External Interface | |
| Network Interface | 1 RJ-45 10M/100M/1000Mself-adaptive Ethernet Interface |
| Network Function | HTTP, TCP/IP, IPV4, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS,IP Filter, PPPOE, DDNS, FTP, IP Server, P2P |
| USB Interface | Rear panel: 1 x USB2.0, 1 x USB3.0 |
| PoE | |
| Interface | 4 independent 100 Mbps PoEnetwork interfaces |
| Supported Standard | IEEE 802.3at |
| General | |
| Power Supply | 48V DC |
| Consumption ( without HDD and PoE ) | ≤8 W |
| Working Temperature | -10°C ~ + 55°C ( +14°F ~ +131°F ) |
| Working Humidity | 10% ~ 90% |
| Dimensions | 44 × 360 × 254mm ( 1.7″ × 14.2″ × 10.0″ ) |
| Weight ( without HDD ) | ≤1.42 Kg ( 3.13 lb ) |
