Açıklama

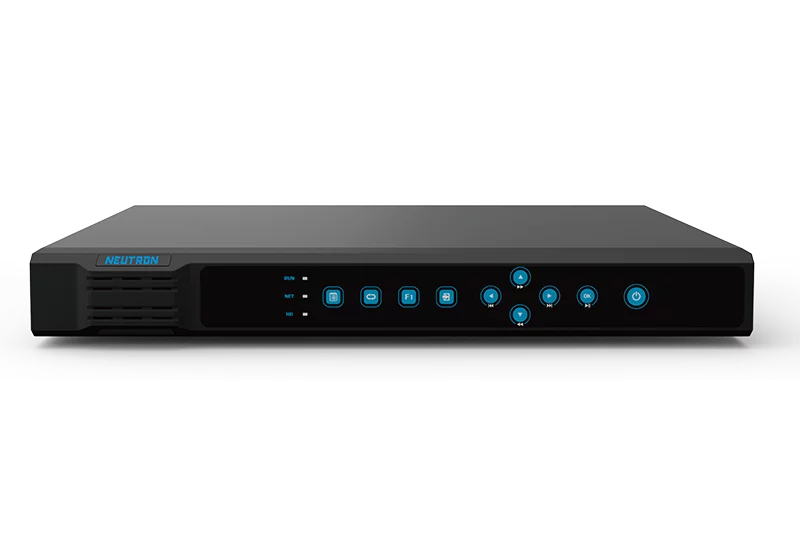

| Model | NVR201-08E |
| Video and Audio | |
| IP Video Input | 8-ch |
| Two-way audio Input | 1-ch, RCA |
| Network | |
| Incoming bandwidth | 80Mbps |
| Outgoing bandwidth | 96Mbps |
| Remote connection | 128 |
| Video/Audio Output | |
| HDMI/VGA Output | HDMI/VGA:
1920x1080p /60Hz, 1920x1080p /50Hz, 1600×1200 /60Hz, 1280×1024 /60Hz, 1280×720 /60Hz, 1024×768 /60Hz |
| Audio Output | 1-ch, RCA |
| Recording Resolution | 4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Synchronous Playback | 8-ch |
| Decoding | |
| Compression | H.264 |
| Live view/ Playback | 4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Capability | 2 x 4MP@20, 4 x 1080p@25, 8 x 720p@25 |
| Hard Disk | |
| SATA | 1 SATA interface |
| Capacity | up to 6TB for each disk |
| External Interface | |
| Network Interface | 1 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface |
| Network Function | HTTP, TCP/IP, IPV4, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS,IP Filter, PPPOE, DDNS, FTP, IP Server, P2P |
| USB Interface | Rear panel: 1 x USB2.0, 1 x USB3.0 |
| General | |
| Power Supply | 12V DC |
| Consumption ( without HDD ) | ≤ 8 W |
| Working Temperature | -10°C ~ + 55°C ( +14°F ~ +131°F ) |
| Working Humidity | 10% ~ 90% |
| Dimensions | 44 × 360 × 254mm ( 1.7″ × 14.2″ × 25.4″ ) |
| Weight ( without HDD ) | ≤ 1.39 Kg ( 3.06 lb ) |
