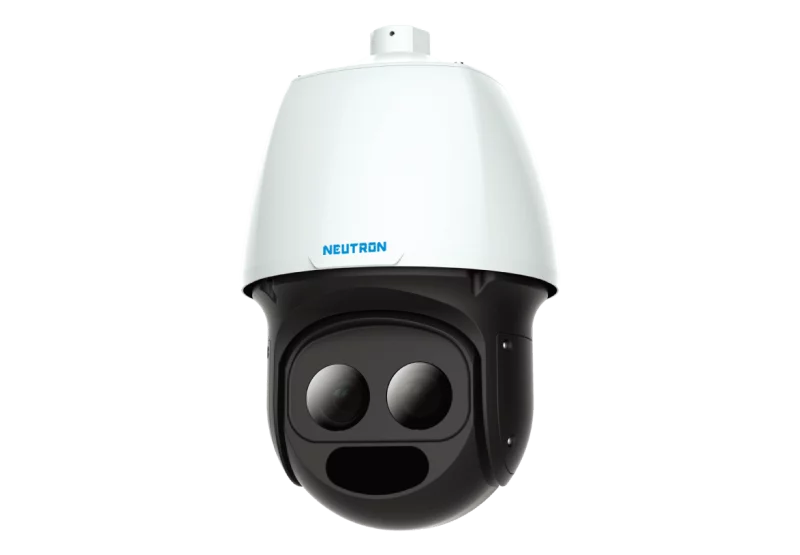

| Model | IPC6242SL-X33 |
| Camera | |
| Sensor | 1/2.8″ progressive scan, 2 megapixel, CMOS |
| Focus/Zoom | 4.5 ~ 148.5 mm (33x optical zoom) |
| Iris | Auto/Manual, F1.6 ~ F5.3 |
| Shutter | Auto/Manual, shutter time: 1/6 s ~ 1/8000 s |
| Min. Illumination | Color: 0.02 lux (F1.6, 50IRE)
B/W: 0 lux |
| S/N | >52dB |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Video | |
| Video Compression | H.264 |
| Frame Rate | 1080P (1920×1080): Max. 30 fps |
| Video Streaming | Triple |
| OSD | Time, custom, preset, PTZ coordinates, zoom, serial port, cardinal direction, network interface |
| Privacy Mask | Supported |
| Audio | |
| Audio Compression | G.711 |
| Two-way Audio | Supported |
| Storage | |
| Edge Storage | Micro SD, up to 128 GB |
| Network | |
| Protocols | L2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, DNS, DDNS, NTP, FTP, UPnP, HTTP, SNMP, SIP, HTTPS |
| Compatible Integration | ONVIF, API |
| Pan & Tilt | |
| Pan Range | 360° |
| Pan Speed | 0.1°/s ~ 240°/s |
| Preset speed: 300°/s | |
| Tilt Range | –15° ~ +90° (auto reverse |
| Tilt Speed | 0.1° ~ 160°/s |
| Preset speed: 240°/s | |
| Number of Preset | 255 |
| Patrol | Preset patrol, route patrol, recorded patrol |
| Home Position | Supported |
| Interface | |
| Audio I/O | Audio interface |
| 1 Input: impedance 35 kΩ; amplitude 2 V [p-p] | |
| 1 Output: impedance 600 Ω; amplitude 2 V [p-p] | |
| Alarm I/O | 2 alarm inputs, 1 alarm output |
| Serial Port | 1 RS485 |
| Network | 10M/100M Base-TX adaptive Ethernet network interface |
| Video Output | 1 BNC, impedance 75 Ω; amplitude 1 V [p-p] |
| General | |
| Power | 24 V AC±25% (default power supply), 24V DC±25% |
| Power consumption: 8 W ~ 47 W | |
| Overvoltage/overcurrent protection | |
| Dimensions (Ø x H) | Ø227 mm x 359.4 mm (Ø8.9″ x 14.2″) |
| Weight | 5.5 kg (12.1 lb) |
| Working Environment | –40°C ~ +70°C (-40°F ~ 158°F), Humidity ≤ 90% RH(non-condensing) |
| IR | Built-in VF laser IR |
| Ingress Protection | IP66 |
